DWDM ASSISTANT

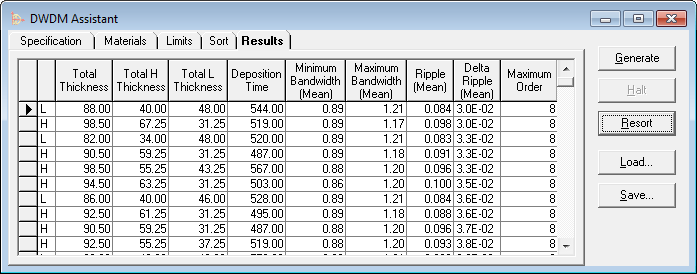

The DWDM Assistant takes the pain and tedium out of the process for the design of multiple-cavity filters, particularly those intended for Dense Wavelength Division Multiplexing. The DWDM Assistant takes a desired specification and produces a set of candidate designs using the method of symmetrical periods. The properties of the candidate designs are displayed and sorted in a number of user-specified ways, such as total layer thickness, deposition time, and ripple performance.

The symmetrical period technique used by the DWDM Assistant is enhanced by a ripple optimization algorithm that adds structures composed only of quarterwave layers to reduce the ripple in the passband. In general, a number of designs will satisfy the given requirements for a filter, but the DWDM Assistant makes it possible to examine thoroughly and rank candidate designs according to critical criteria.



Ordering Information

All products and services may be ordered directly from Thin Film Center or from any of our agents. For your convenience we accept payment by American Express, Mastercard and Visa. Please contact us, or our agents for pricing information.

Thin Film Center Inc
2745 E Via Rotunda, Tucson, AZ
85716-5227, USA
Telephone: +1 520 322 6171
Fax: +1 520 917 4395
Email: info@thinfilmcenter.com
